Edit Localization

This article will cover how to edit the localization on previously localized stations in Collage Site.

Stations that have been previously localized but may have a mistake in either the settings used, or the control points mapped to the scanned targets, can be edited in order to correct these mistakes and get a better localization.

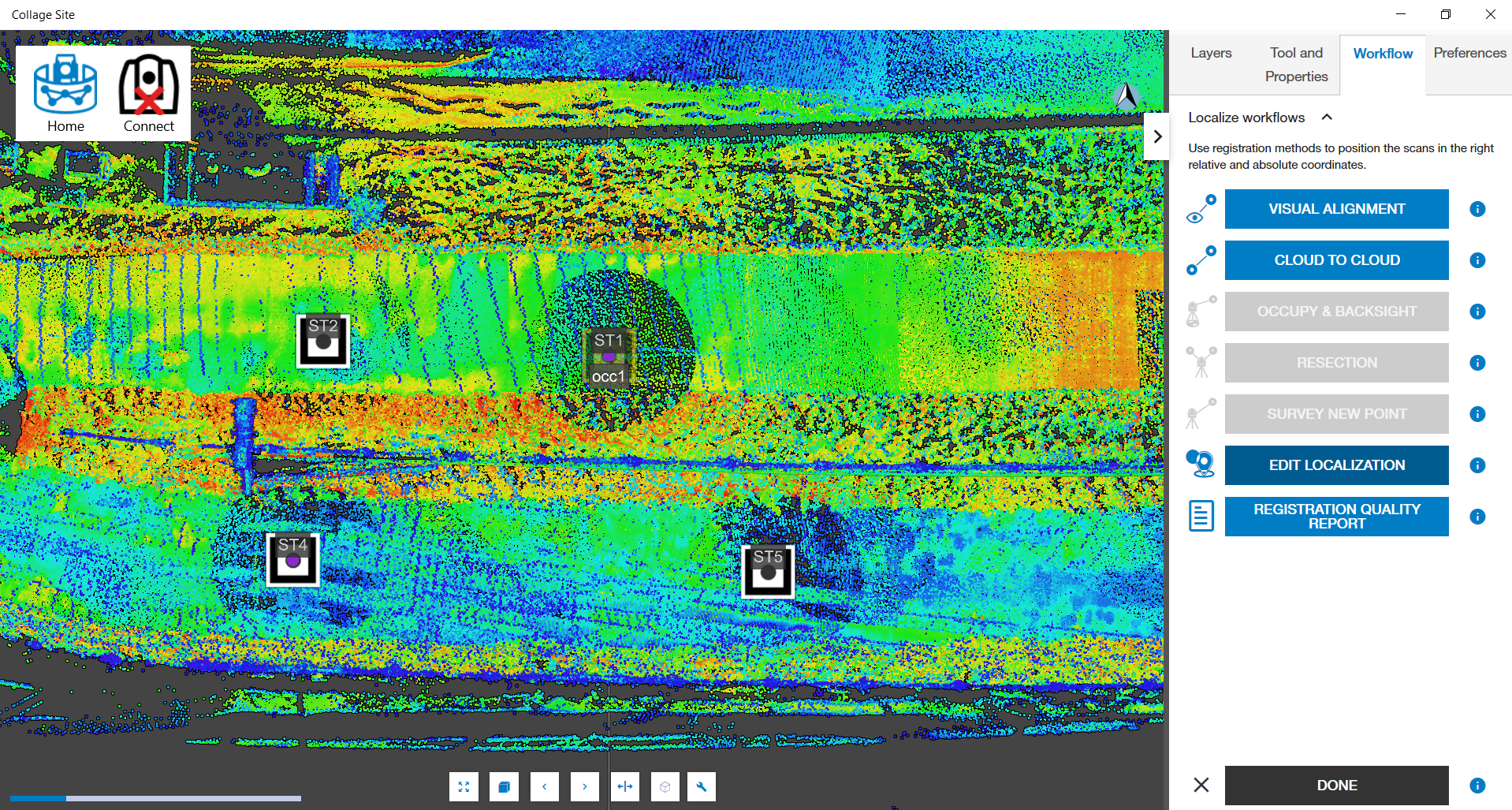

First, select a station that has been previously localized based on control points. Next, tap the Workflow tab and choose the Localize option from the right side of the screen. Then, choose the Edit Localization option.

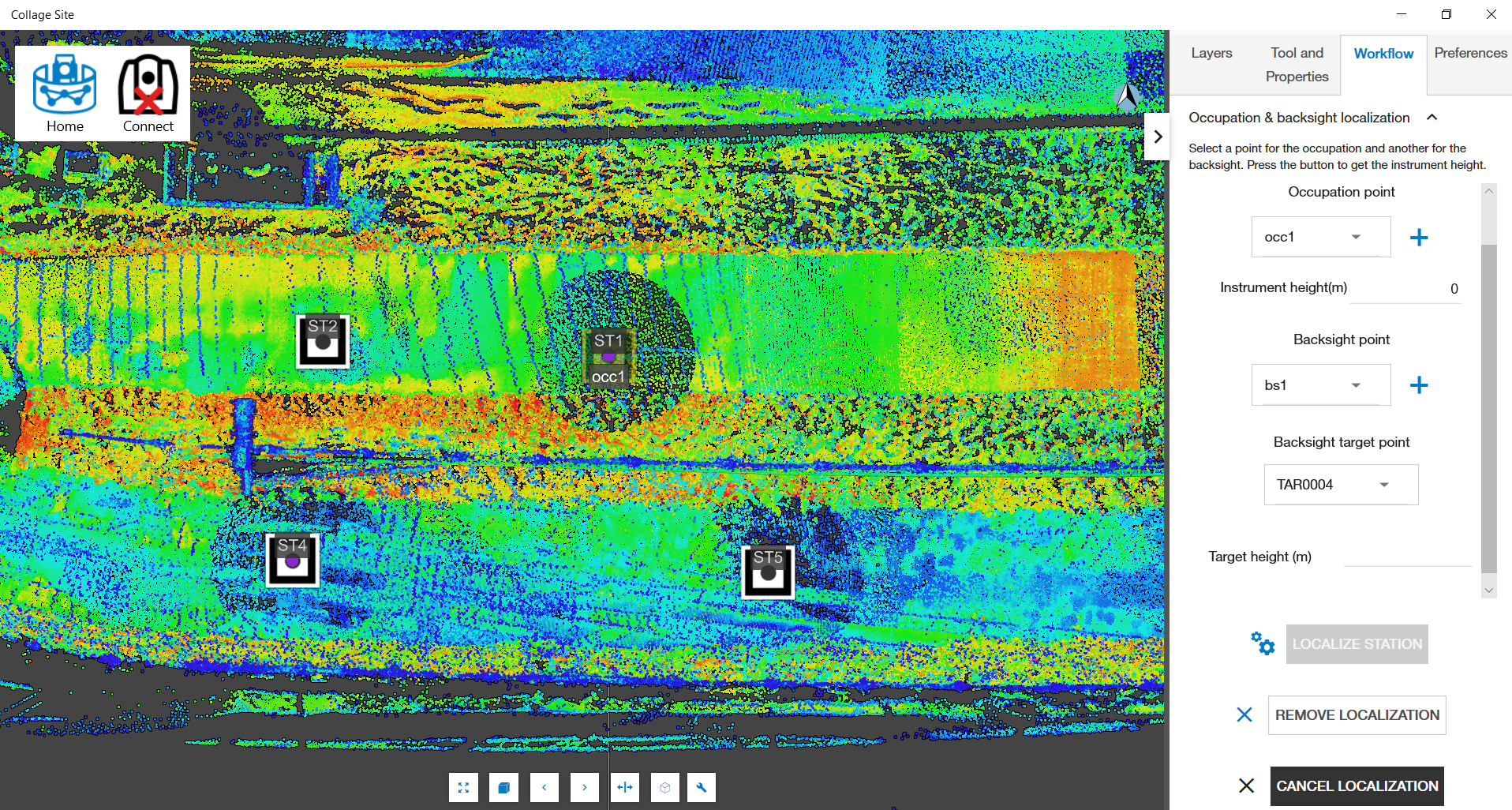

On the right side of the screen, you will see the Workflow panel for the registration method performed on the selected station previously. The following images show editing OCCBS registration settings as an example.

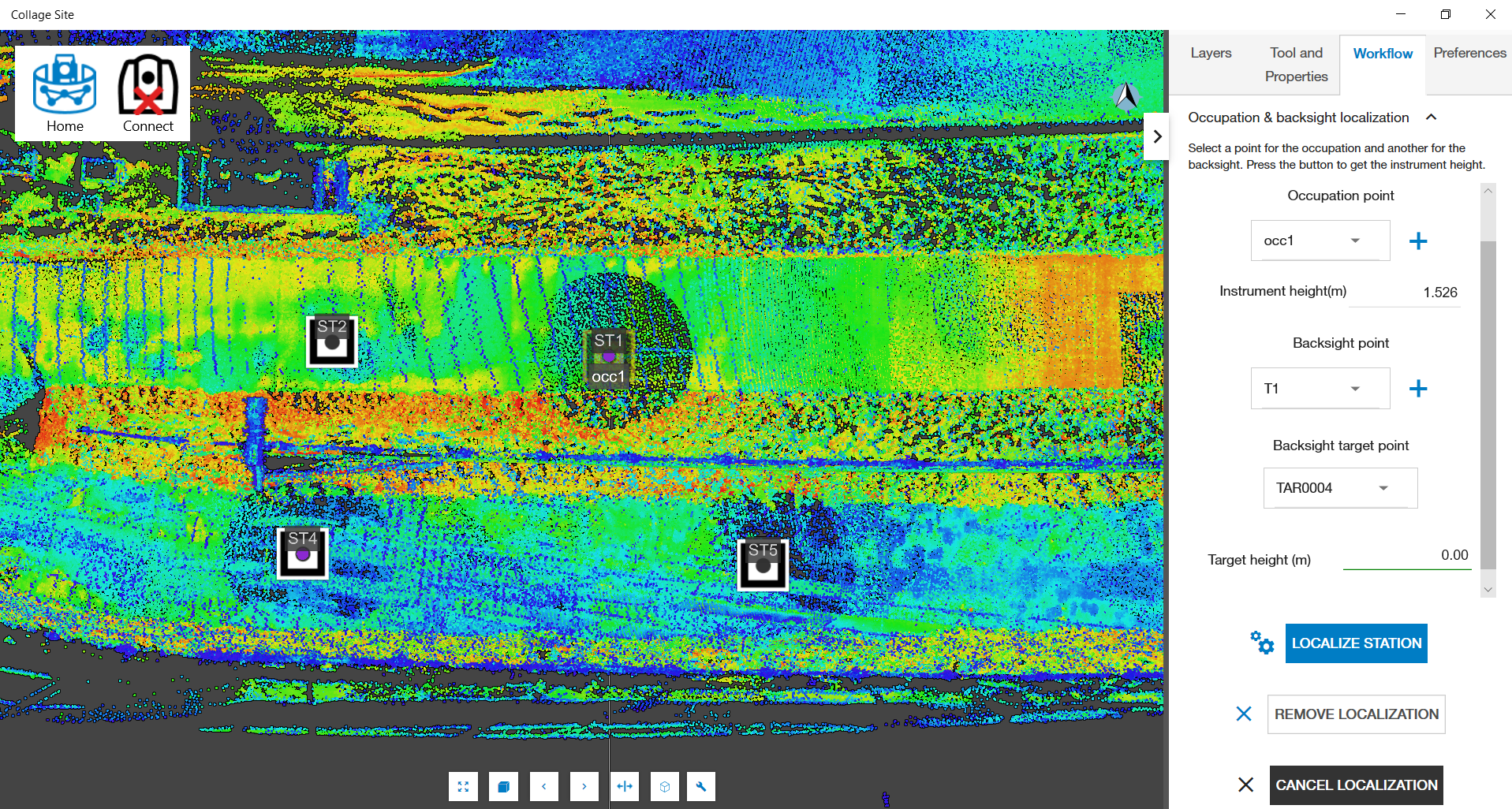

Choose the correct reference points and target files corresponding to the points.

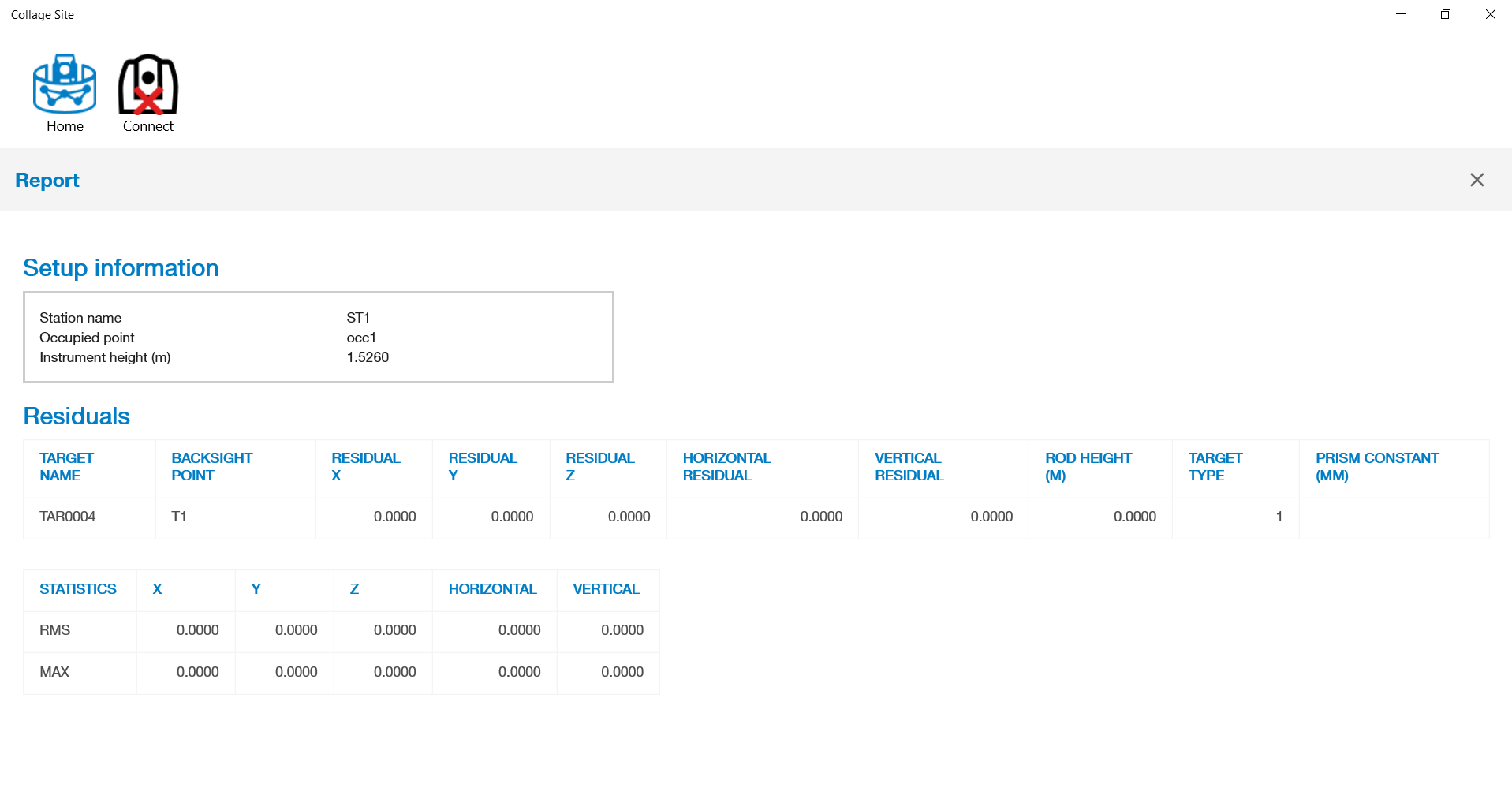

Tap the Localize Station button to run the registration process. After the process is completed, the Registration Quality Report will be viewable.

Tap the X button in the top-right corner to close the report.
