Export Control Points

There will be certain situations where being able to export the Control Points you are using in Collage Site will be beneficial. For example, if you have spent time surveying new points in the software or if you have created a control points layer in Collage Site and shot in custom points, having that for future projects may be beneficial and in some cases required for import. Collage Site will export these Control Points in a CSV file format for you to easily import and reference where needed.

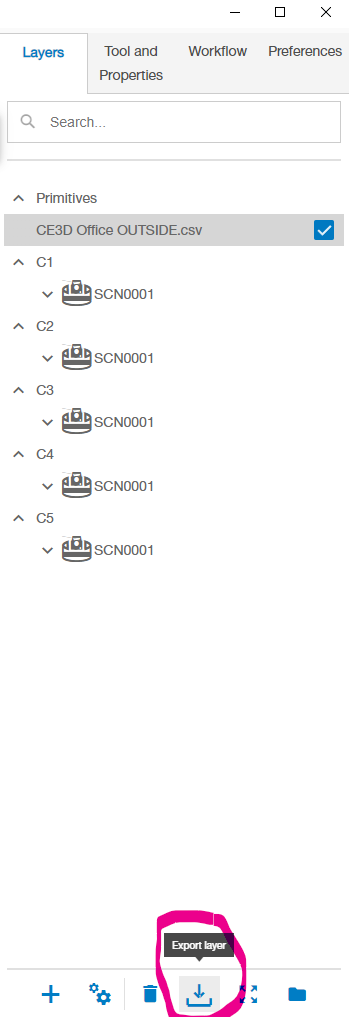

To export the control points from your project, first navigate to the Layers tab of the right hand menu, select the control points layer, and then tap ‘Export Layer’:

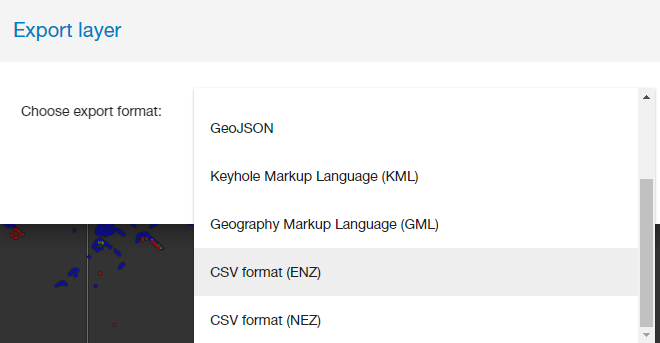

A dialog will pop asking you to choose a file format - for control point files it is recommended to use either of the CSV file format options:

From there set the desired measurement unit, and tap the Export button. The file will be created and placed into your specified downloads folder.
