Navigation

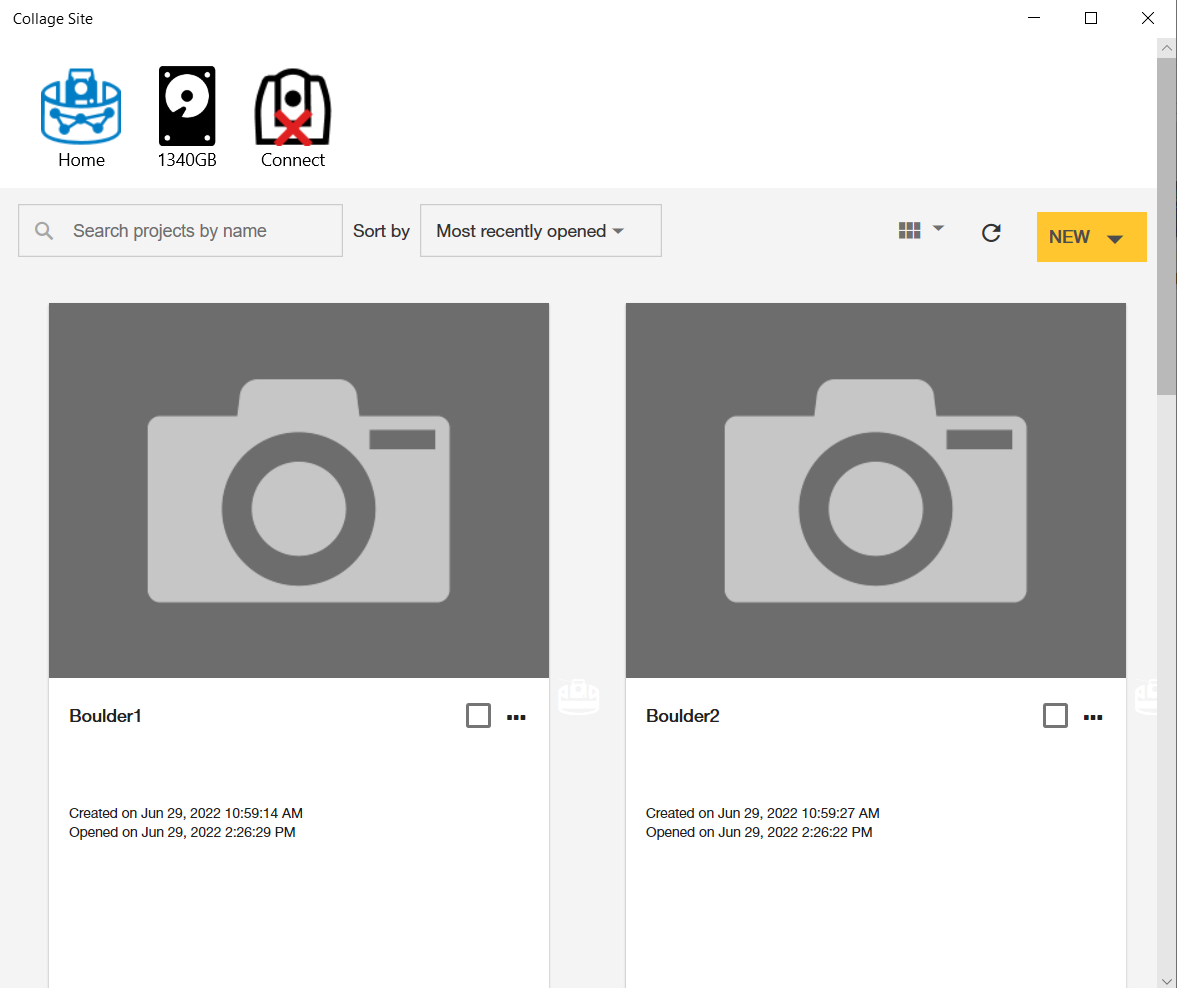

Collage Site is composed of a series of pages that are focused on different processes you will need to perform in the application. By default, when you open Collage Site it will take you to a dashboard page that shows your most recent projects. You can tap on the project tiles to open an existing project, or select a different page if you want to do something else.

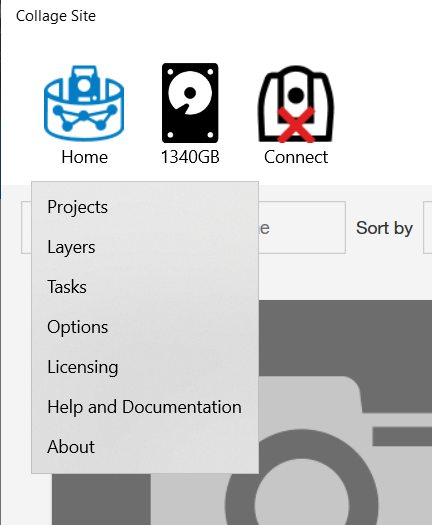

Home menu

• Projects: Project manager allows you to manage data projects.
• Layers: Layer manager allows you to manage data layers.
• Tasks: Task manager allows you to see what tasks are currently being performed, and have been completed.
• Options: Set application options such as language preference.
• Licensing: License manager allows you to activate licenses which will enable features of Collage Site application.
• Help and Documentations: This will open the Collage Site Knowledge Base.
• About: Software version information is shown.



Scanning and Importing scan data workflows in Collage Site creates what is called Layer data. These Layers come together and are overlaid on top of each other to ultimately create cohesive projects in the main viewer. You can manipulate and create layer data in various ways, which will be covered throughout this Knowledge Base.

By tapping the main logo button on top left of the screen, you can easily navigate through different pages of Collage Site.

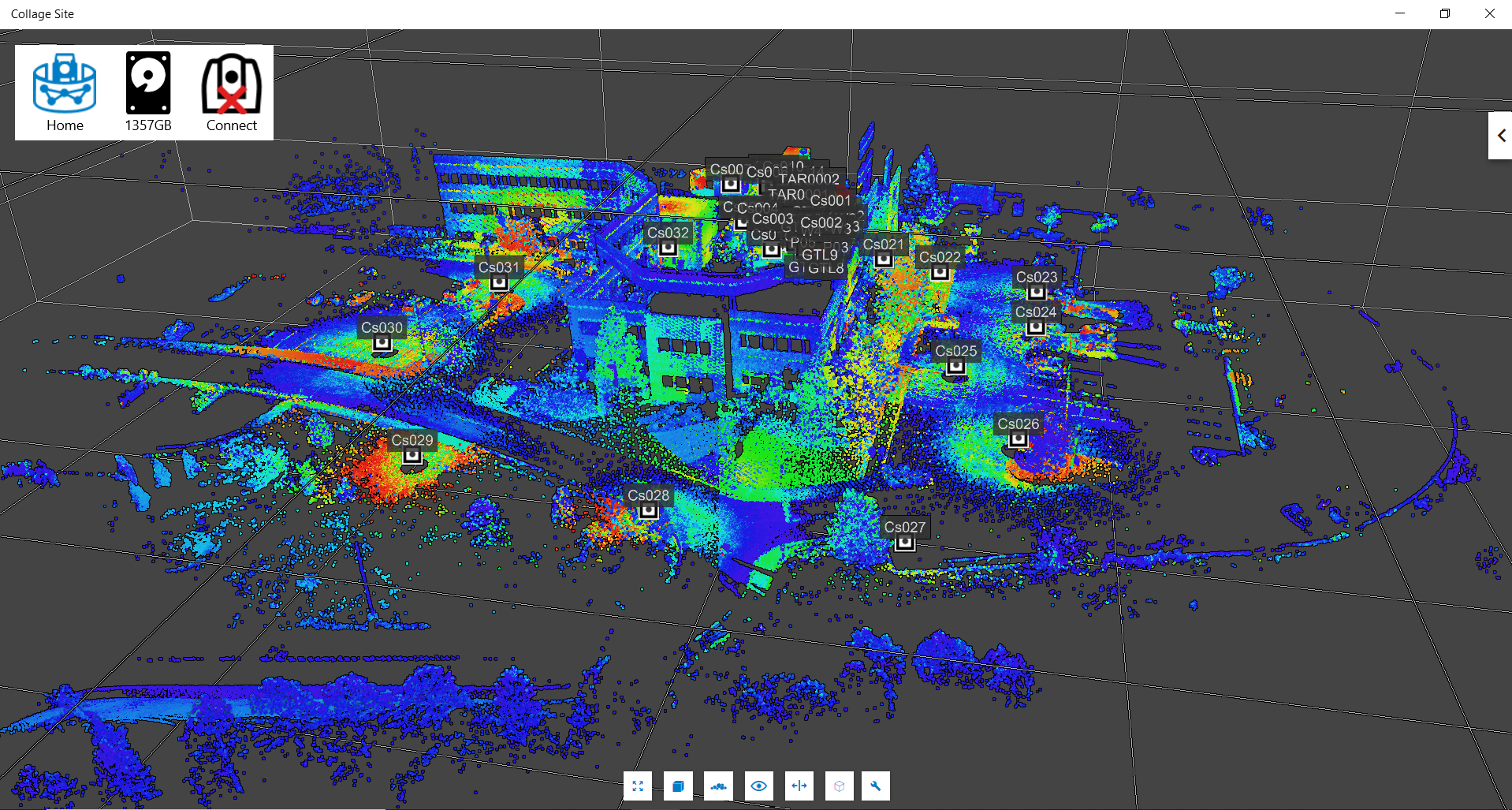

Project Viewer

Tapping on a project in the projects or dashboard page will open the project in the project viewer.

The project viewer has the following components on the screen:

• Home and Status Bar (Top left): Use this to switch back to other pages and to connect to an instrument. Once connected to an instrument, it’s status is displayed(see next section).

• Workflow Panel (Right Side): This panel will give you access to the layers in the project, settings that can be adjusted for the project or selected layers, as well as all workflows you can perform on a project in Collage Site. It is collapsed by default.

• Tool Bar (Bottom): This will show you all the contextual View tools, as well as other tools based on the workflow you’re currently in.


Project View Manipulation

Floormap view:

• One finger touch and drag to pan
• Two finger pinch and/or expand to zoom in and out


3D view

• One finger touch and drag to orbit
• Two finger pinch and/or expand to zoom in and out
• Three finger touch and drag to pan

Station Icon

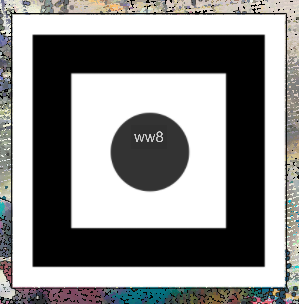

In Collage Site, each Station represents a container for all of the information that you can collect with the instrument, at the location that you have it set up. A normal station that hasn’t been localized using control points looks like this:

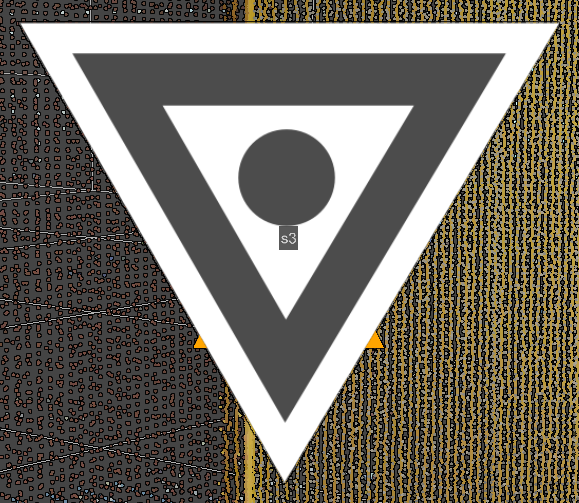

While a station that has been localized using control points looks like this:

Also, scanner image is displayed on the top of station icon in case of current active station.

Target Icon

A Target in Collage Site represents a location in your project that was used for localizing a station. These targets could be placed on wall locations using specific markers, or be visible in your project wherever a prism was setup and used to get on control:

Control Point Icon

Control Points in Collage Site represent various survey points throughout your project that can be used to localize a station and get on control. In your project viewer, they look like small, labeled circles:

Panorama Icon

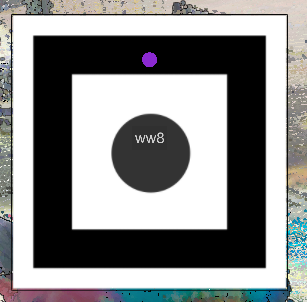

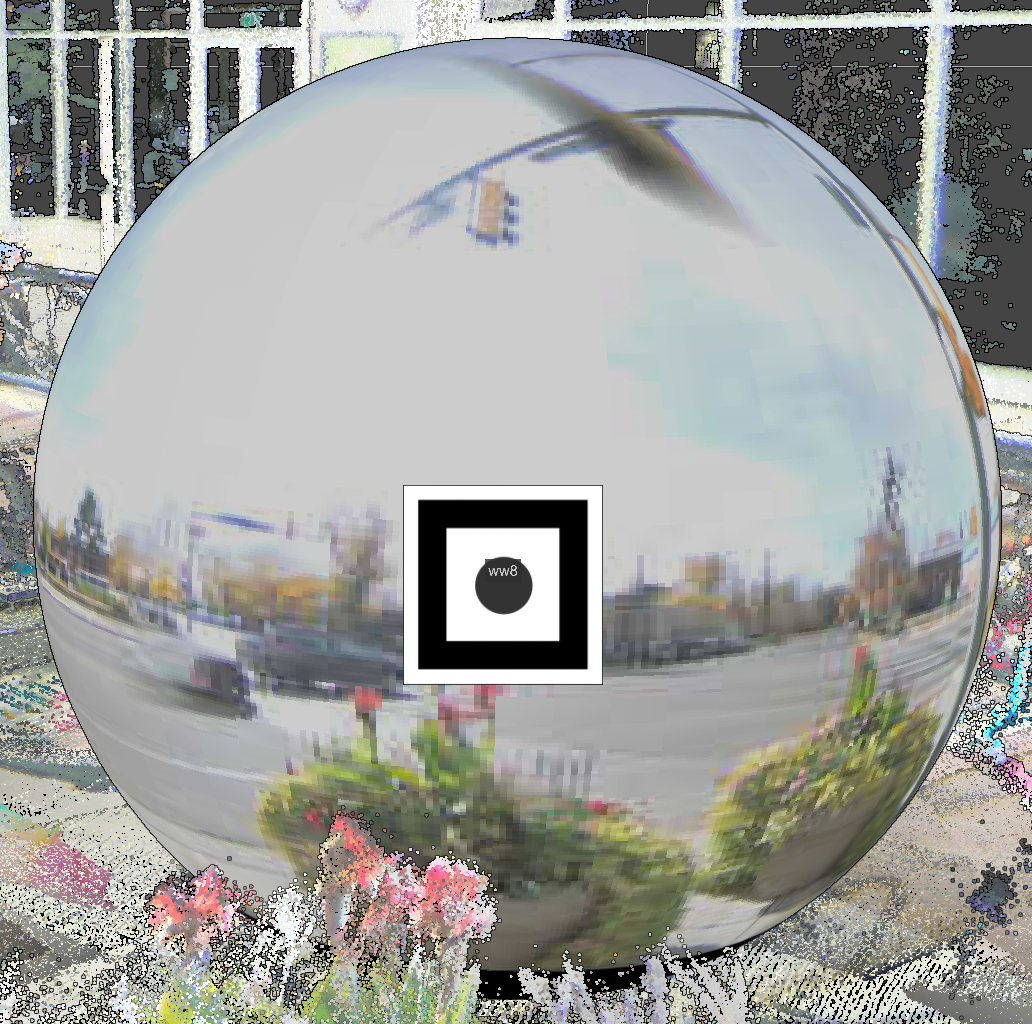

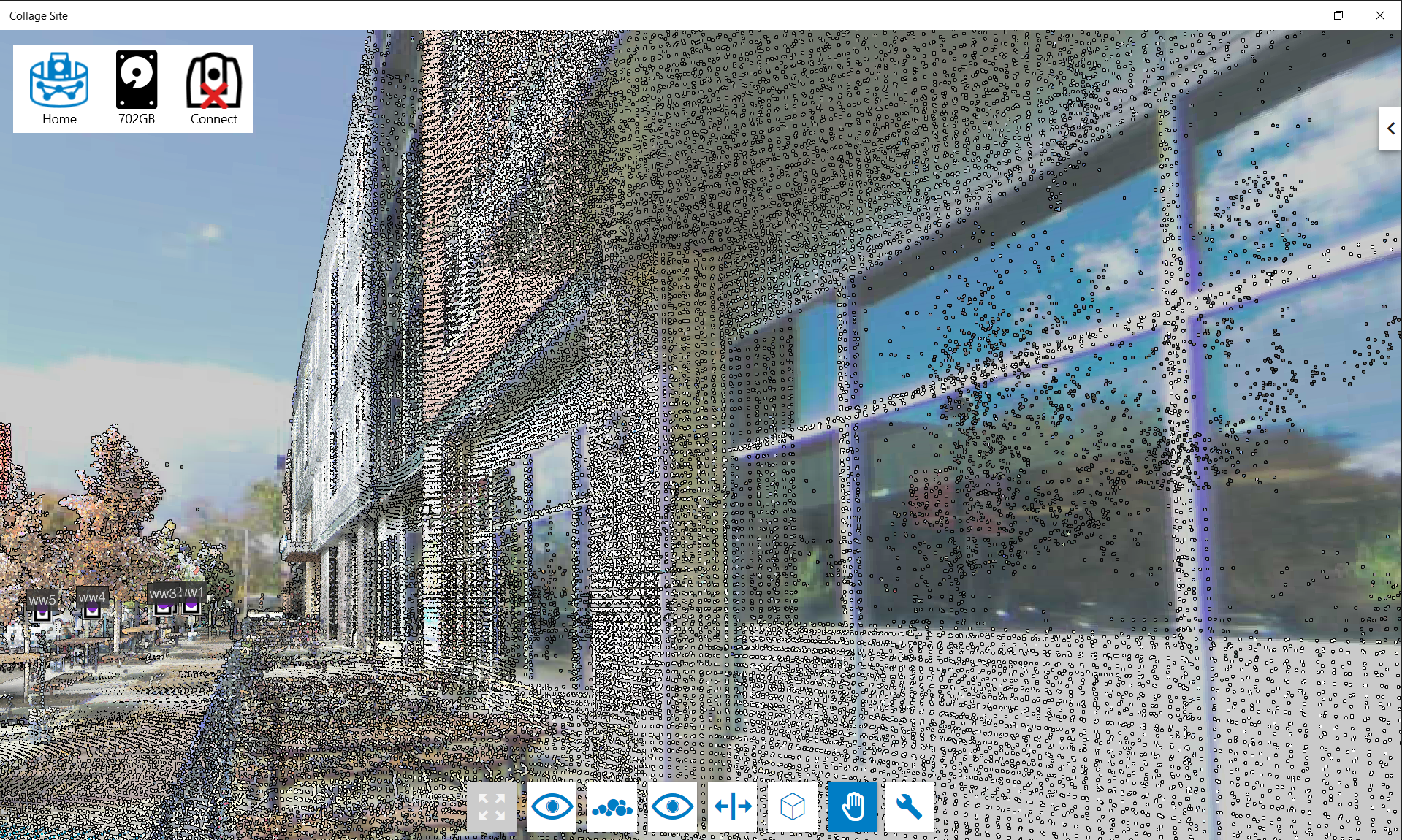

You can use the Panorama bubble in Collage Site to toggle on the image view. In this view mode you are able to see the images taken by the instrument as opposed to the point cloud data that has been gathered. To enter Panorama view mode, simply double tap/click on the purple dot that appears on a station - note that the purple Panorama dot will only appear if you had Imaging enabled for that scan/station. It is also important to call out that you are able to overlay your project point cloud data in this view type, including Elevation Heatmaps, by using the “See Image In Background” button:

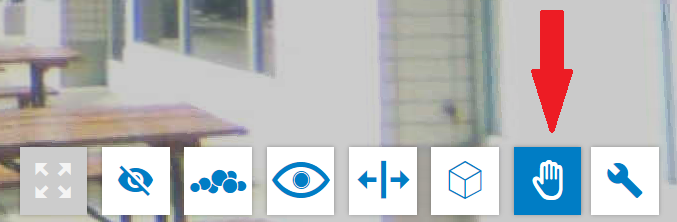

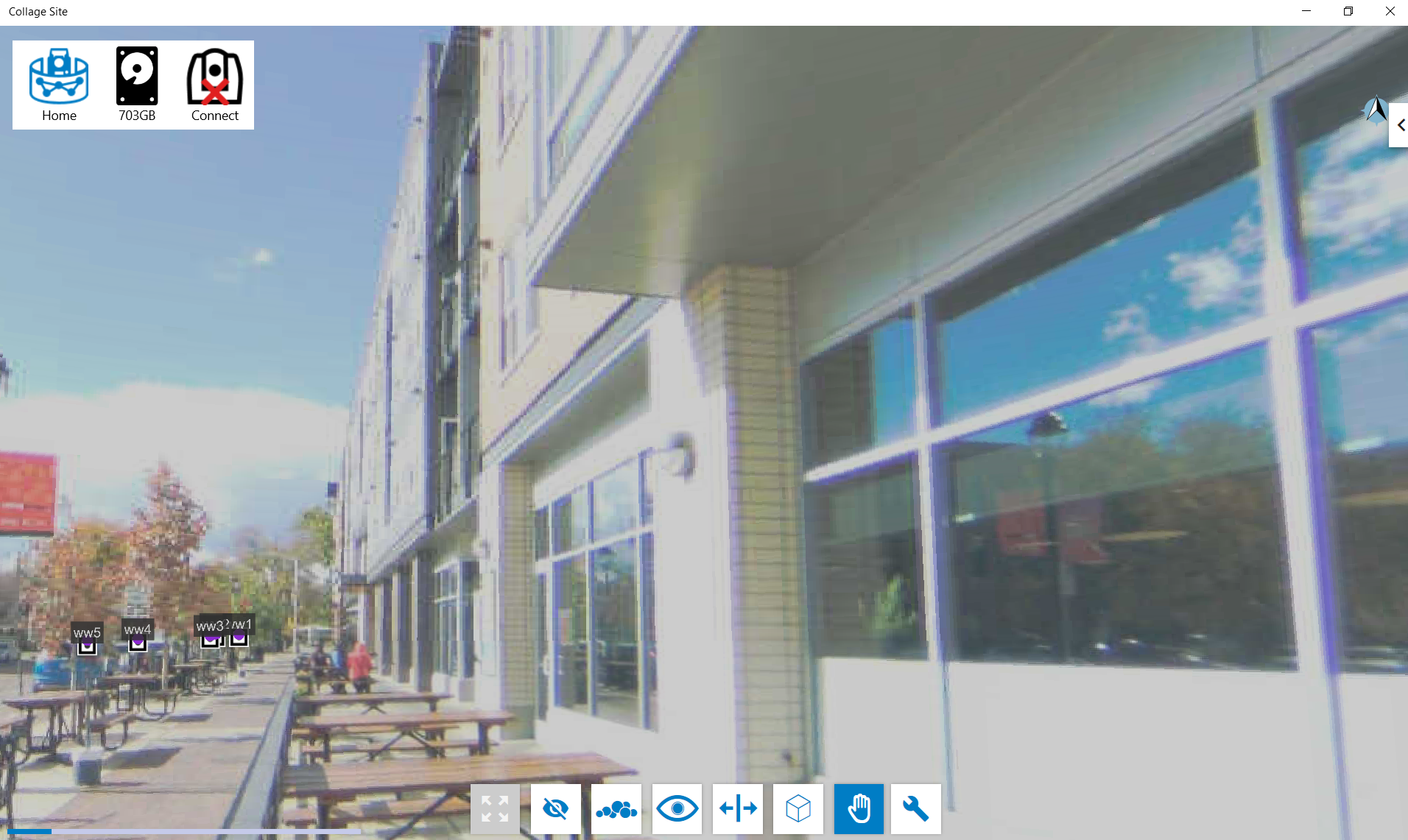

You will also notice two additional buttons towards the bottom of your screen while you are in Panorama mode on the tablet. The first is the Move Panorama Manually button that looks like a hand - activating this tool allows you to use the touch screen to navigate around your panorama image as opposed to the gyroscopic navigation:

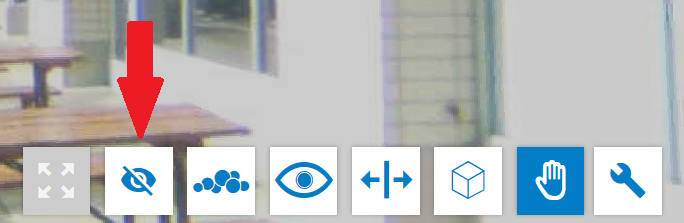

You also have the ability to overlay your point cloud on the panorma images by tapping the See Image in Foreground/Background button:

If you want to exit Panorama view mode, just switch view mode to Floormap or 3D view mode like you normally would.

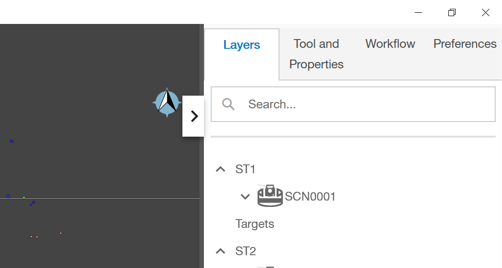

Workflow Panel

Expanding the right panel will give you access to all of the settings and workflows for the project you are currently in. When expanded, you’ll see the following tabs:

• Layers: This tab contains the data tree for the active project and lets you select individual layers or elements (features) to modify their appearance, change their visibility, remove them, etc.
• Tool and Properties: This tab contains the properties of selected elements and controls the behavior of any tools that are currently active.
• Workflow: This tab organizes all the various workflows you can perform in Collage Site.
• Preferences: This tab contains all the project and user settings for the active project.

Tool bar

The tool bar towards the bottom of the screen can help you control what you are viewing in the main Project viewer, as well as how you are viewing those data layers. It also gives you access to other tools that are contextually relevant to various Collage Site workflows such as a measure tool, sectioning tools, etc.

Zoom Extents

Tapping this button will zoom you to the extents of all points and vector data in the project.

View Orientation

• Right View: Gives you a ride-side view of your project data.
• Left View: Gives you a left-side view of your project data.
• Back View: Gives you a back-side view of your project data.
• Front View: Gives you a front-side view of your project data.
• Bottom View: Gives you a bottom-up view of your project data.
• Top View: Gives you a top-down view of your project data.

Lidar Properties

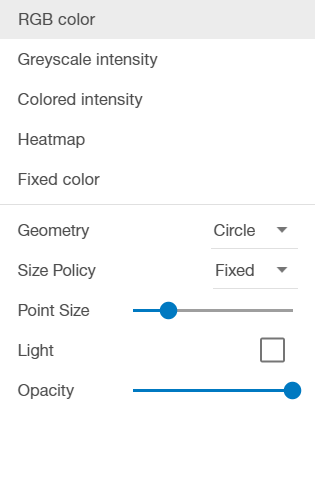

You will see a selector panel option for lidar properties that you can use to adjust the visibility of your point clouds. You can change the colorization of point clouds as necessary using the options in the screenshot below.

Manage Visibility

Tapping this button will manage visibility of project data by data type. Unchecking one of these boxes will make the associated data disappear from the 3D viewer.

Split View

Tapping this button will split the view into two panes organized horizontally. This can be used to view a selected points list, features in an imported file, or sections / buffers of the point data.

View Mode

These view mode buttons will let you set the view mode of the model environment in the window

• Section View: Shows user defined sections of the point cloud data along lines or polylines
• Table View: Shows a table of elements in the selected layer in the data tree
• Floormap view: Shows a 2D Orthographic view of the data
• Panorama view: Shows you a 3D perspective view of the data from a fixed location
• 3D View: Shows you a 3D Perspective view of the data you can freely navigate

Tools

Tools will allow you to use many of the same features as Collage Web.

• Information: Default mode where you can select / deselect layers
• Measurement: You can measure distance and area.
• Buffer and Sections: You can slice and isolate data in the view.
• Annotation: You can add annotation like text / images / URLs etc…
• Layer Editing: You can edit layer information
• View Point Manager: You can store view point and jump the stored view point at any time.
• Screenshot: You can take screenshots and set the image a thumbnail of project.

Please see detail information here.
