Auto Level

This article will cover how to perform Auto Level while using Collage Site.

This feature is only available when connected to Topcon ESN-100 scanner

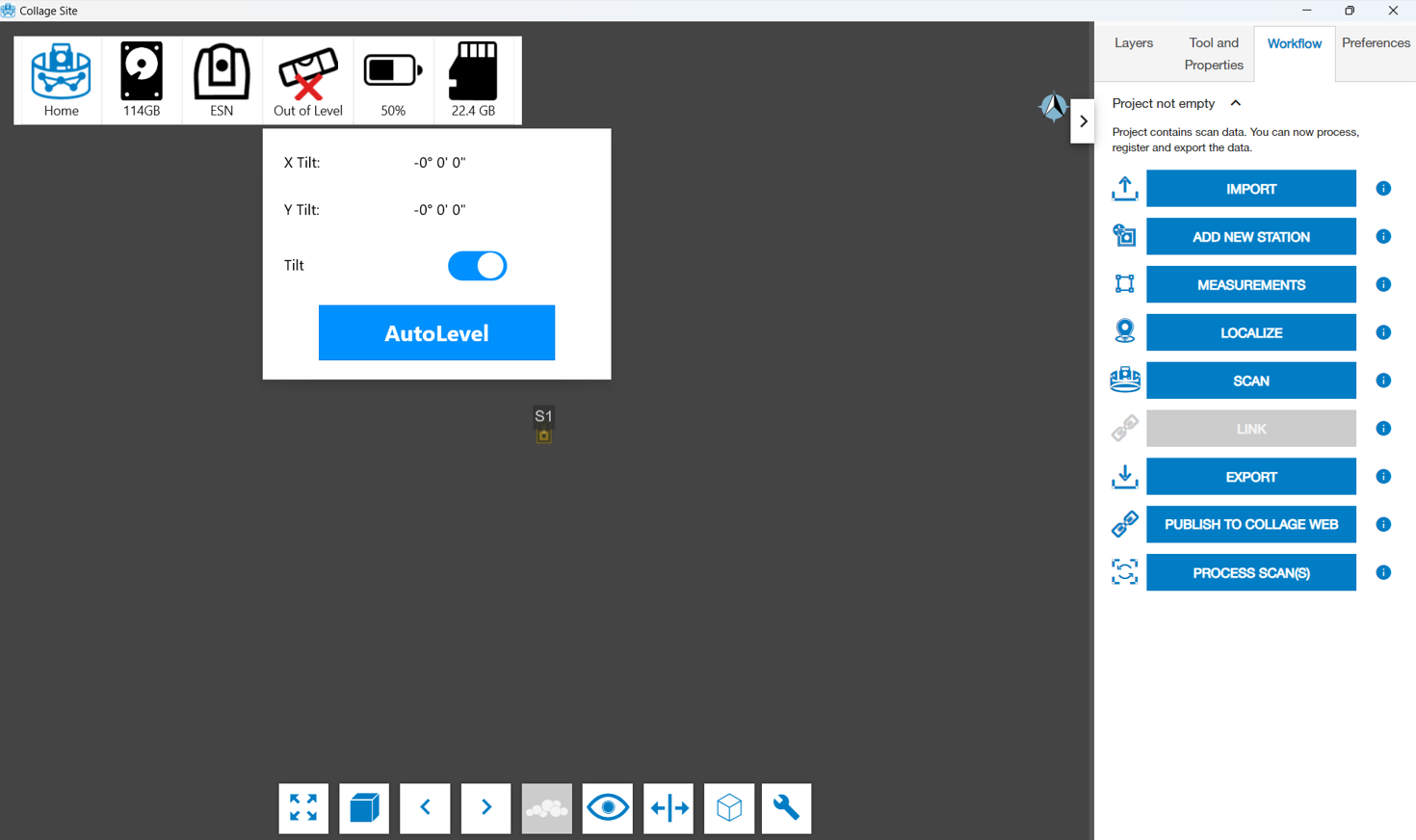

The Auto level function automatically levels the ESN-100 scanner. In order to use it you must have the Tilt Enabled. First tap the Tilt Status button at the top of the screen.

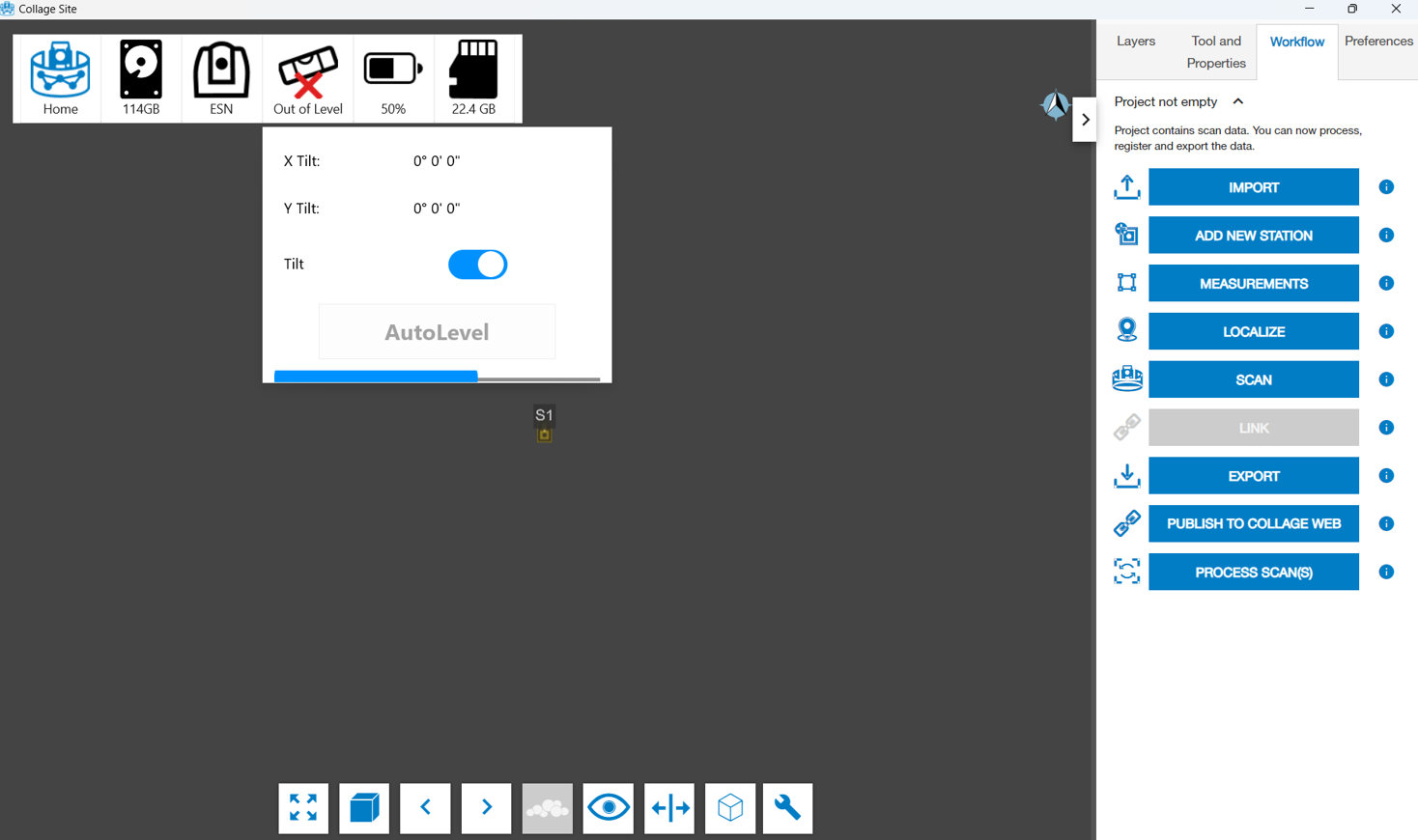

Then ensure the tilt is enabled and tap the AutoLevel button

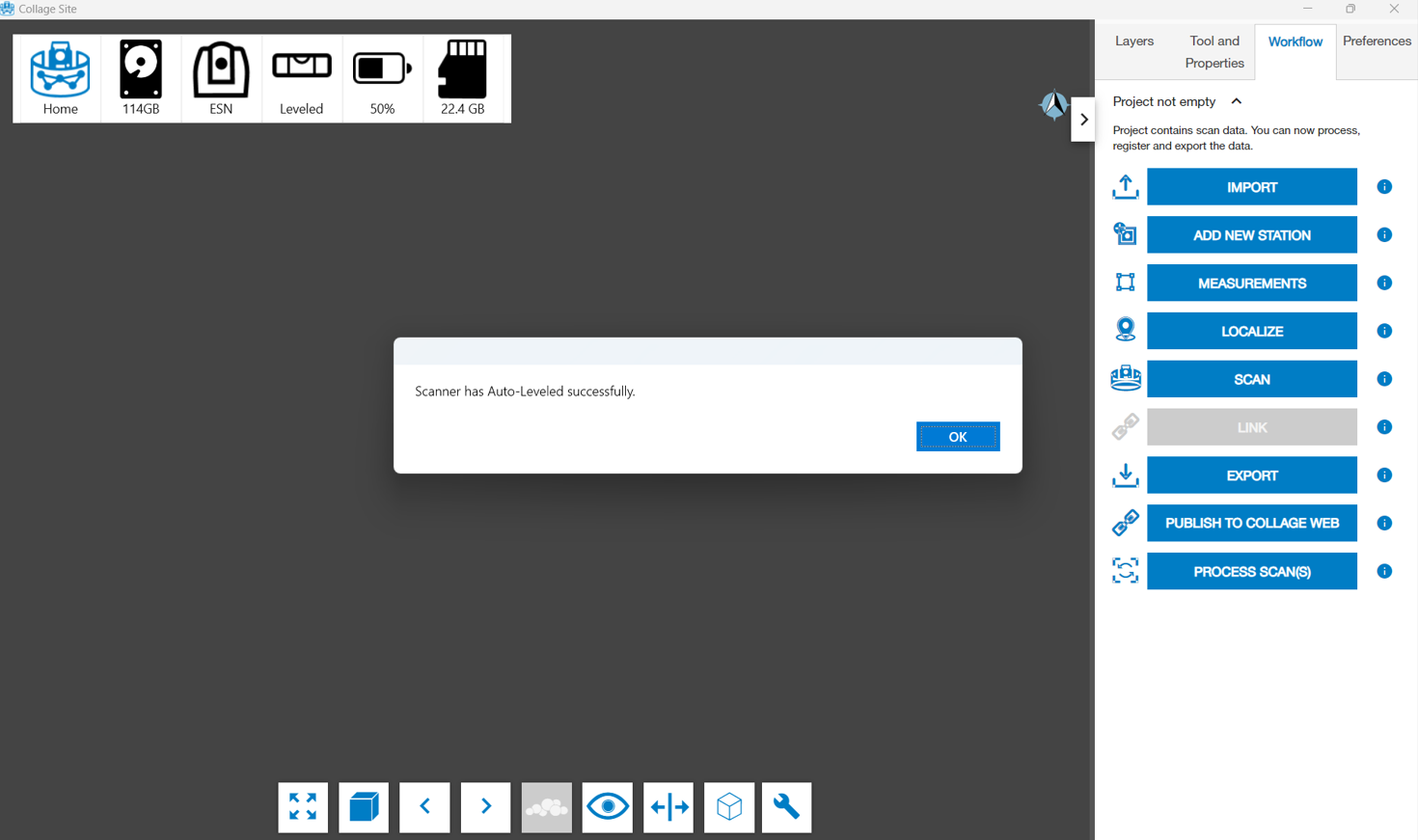

You will then be given this display once the device has finished the leveling process
