EdgeWise Plant 4.0 should be in every pipe modeler’s toolbox…We reduced our 3D modeling time substantially.

Robert Greenhalgh, 3D Data Specialist, Ramboll Oil and Gas

I am beyond impressed. I was able to simply highlight all the pipe objects and easily convert to pipe families. Revit automatically recognized the pipe size which was incredible. So far it has exceeded my expectations.

Devon Kelley, BIM Specialist, PrecisionPoint, Inc.

EdgeWise Plant 4.0

Complete end-to-end modeling solution for plant projects
large and small

9 new features to speed your 3D modeling

1 Better automated
extraction

2 Spec-driven valves
& flanges

3 Enhanced QA tools

4 Demolition tool

5 Billion-point visualization

6 End-to-end editing tools

7 Create custom specs

8 Expanded SmartSheet
adds intelligence

9 Export intelligent model to CAD

Click here to learn more

Introducing EdgeWise MEP™ for Revit®

Finally, a fast and accurate tool for modeling as-built pipes in Revit®

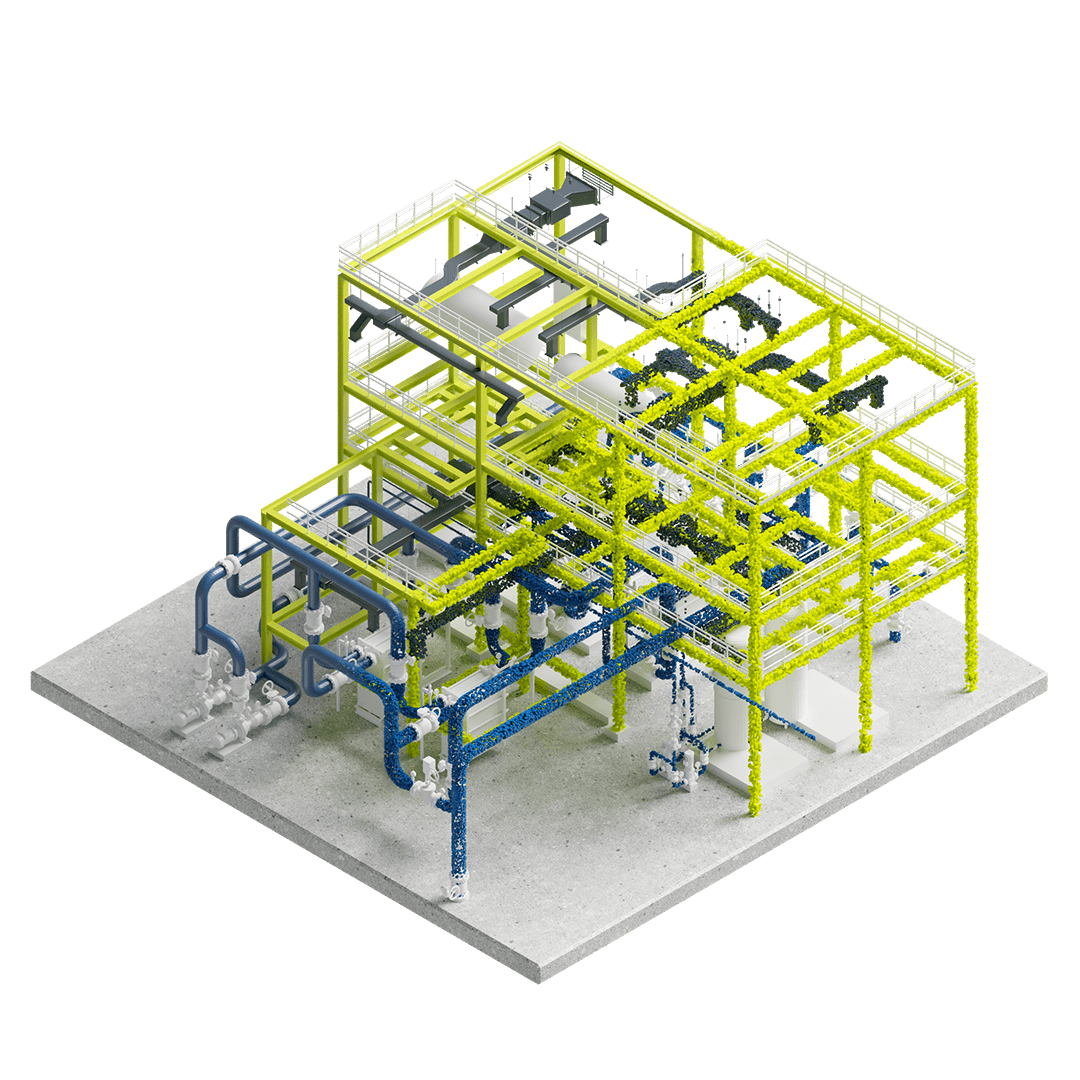

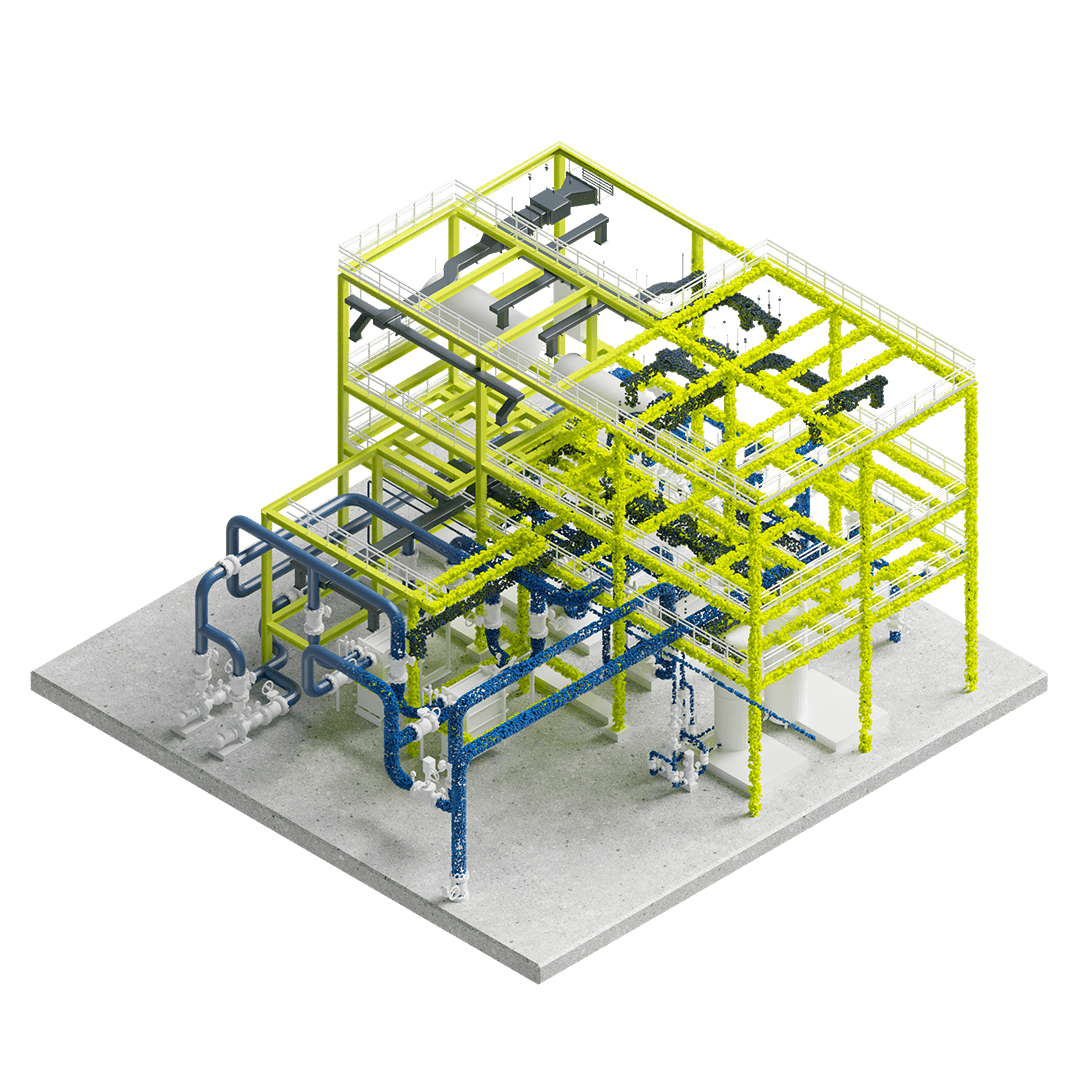

EdgeWise MEP for Revit leverages the powerful feature extraction technology of EdgeWise to automatically extract pipe solids from laser scan point clouds. Once connected into pipe runs the model can be imported into Revit as pipe objects and easily assigned to pipe families. All intelligence extracted by EdgeWise, such as diameter, length, elbow bend radii and more, is also transferred into Revit.

Users are reporting up to an 85% savings over their normal modeling workflow.

Click here to learn more

Convert an EdgeWise Model to a Revit Model seamlessly

EdgeWise Model of an MEP room completed automatically in minutes

…then immediately transferred into Revit including intelligence such as diameter, length and more.

Fast just got a whole lot faster…

EdgeWise new multi-core processing engine along with better extraction algorithms and easy finishing and QA tools deliver maximum-accuracy models up to 85% faster!

Learn more about our products

EdgeWise MEP for Revit

EdgeWise MEP for Revit has a lightning-fast workflow that allows you to go from field-to-finished Revit deliverable in record time Read more...

EdgeWise Plant™

Loaded with new features to help you deliver fast and accurate 3D models. From better algorithms to faster processing to 64-bit, the new EdgeWise Plant will... Read more...

New EdgeWise Case Studies

3D Imaging Services Reduces MEP Workflow on Pharma Project by 60%
3DIS were charged with creating an accurate as-built 3D AutoCAD model of a 3,200 square foot area of a pharmaceutical plant which was being renovated. The model needed to document all walls, doors, floors, ceilings, structural steel, roof deck as well as all MEP equipment and piping 2" and larger. The as-built model would be used for MEP coordination during the renovation.The project required 23 scans using a FARO Photon120 throughout the plant. The project was particularly challenging because… Read more (PDF)...

Look what your colleagues are saying about EdgeWise

Edgewise Plant models pipes at warp speed. We were able to complete our project at least 60% faster and the new QA tools ensure pinpoint accuracy and control. It gives us a real competitive advantage bidding projects.

Nick Bobbitt, BIM Coordinator, 3D Imaging Services, Inc.

I was amazed at how much it reduced the manual workload and allowed my time to be focused on the finished product.

Jody Lounsbury, PLS, HDS Manager, Clough Harbor Associates

Optimize Your Modeling Workflow with EdgeWise Plant and EdgeWise MEP for Revit

Fast

Better algorithms extract many more pipes—new automated finishing tools complete the model in record time

Accurate

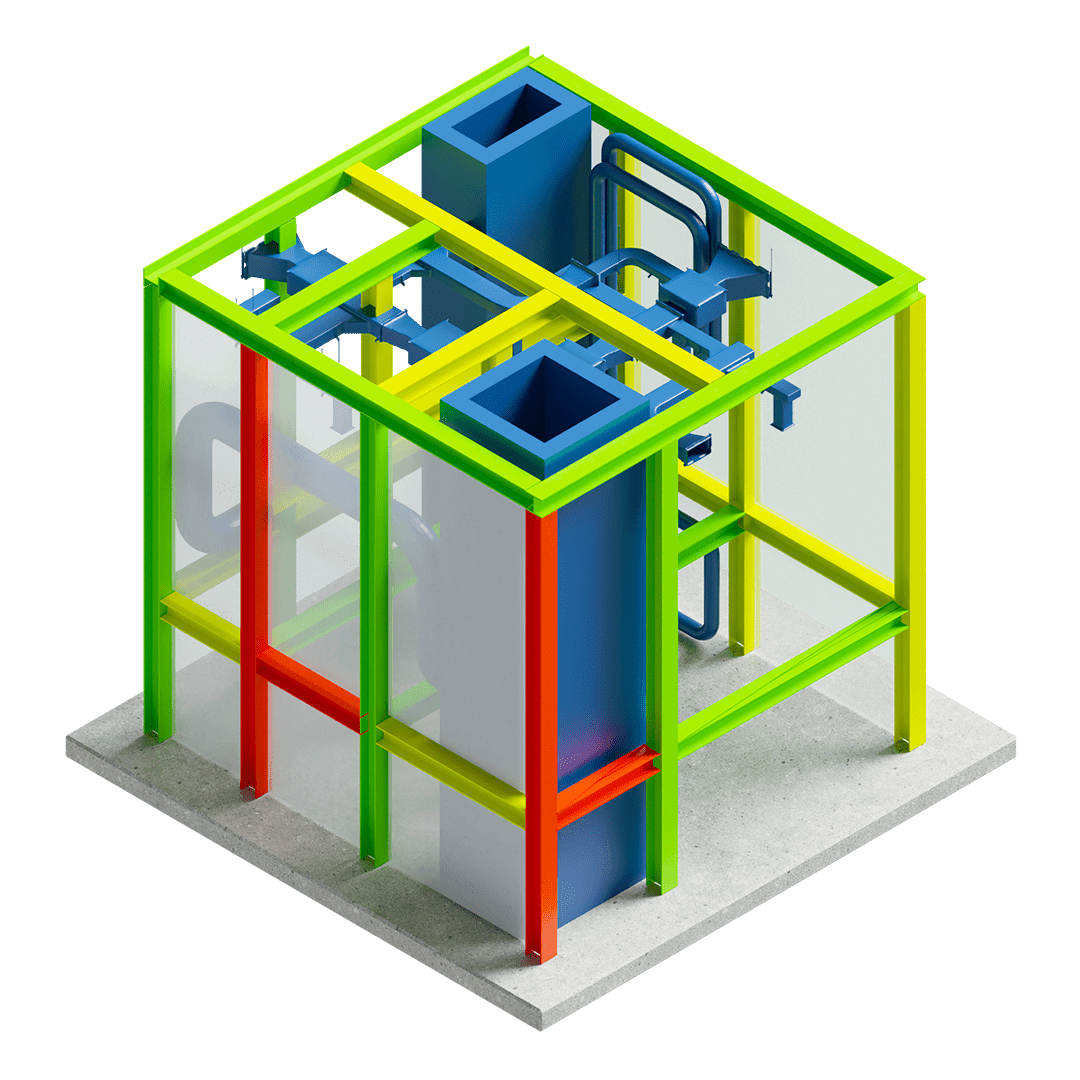

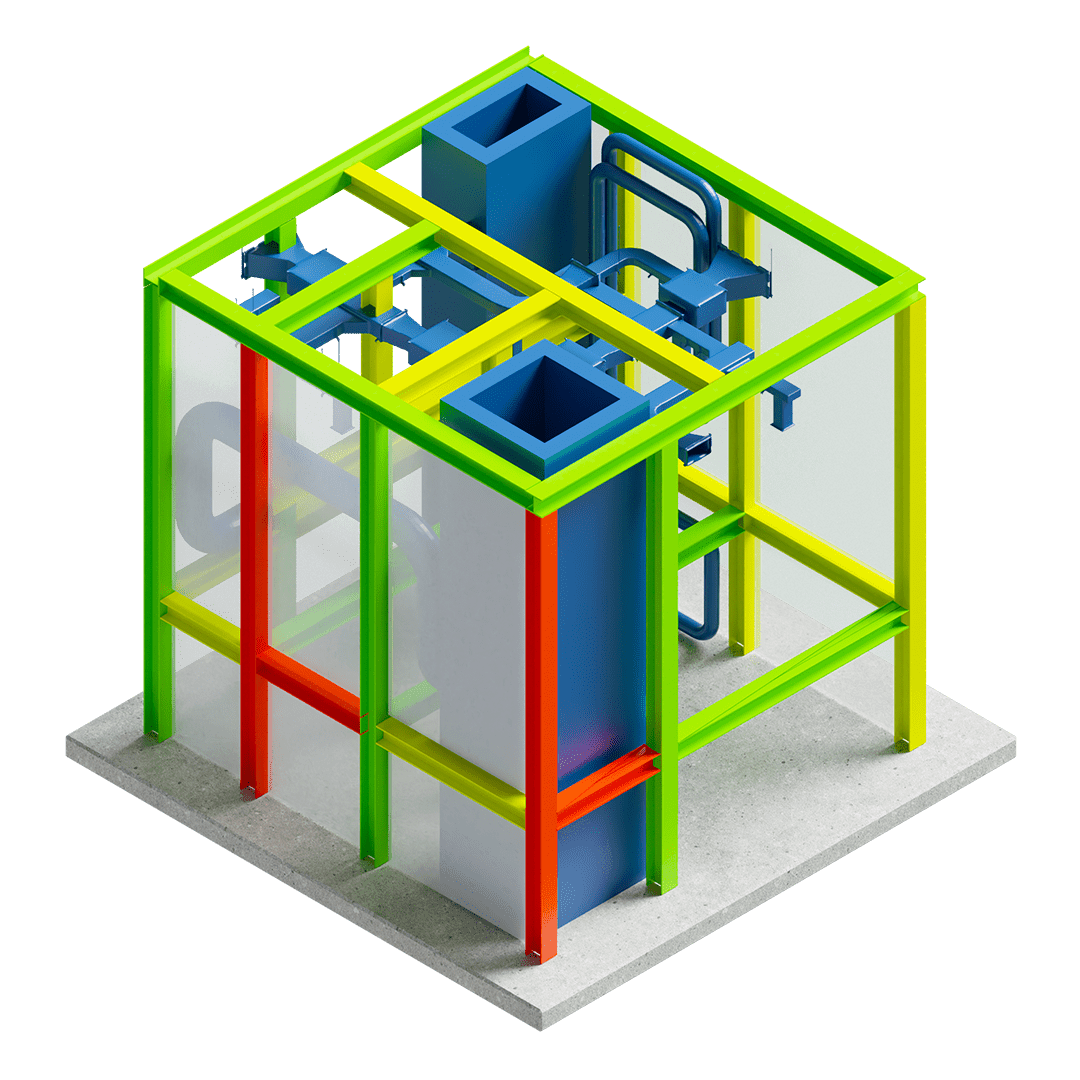

New QA tools validate the accuracy of the extracted pipes against the point cloud

Intelligent

New SmartSheet™ technology extracts pipe intelligence in an editable worksheet

Integrated

Export your EdgeWise Intelligent model in layers/levels to Revit, AutoCAD, MicroStation or Cyclone

Latest News

ClearEdge3D Releases EdgeWise Plant™ 4.0
Now offers full, end-to-end 3D modeling solution with 9 new features and enhancements including valve/flange placement, demolition tool, custom spec editor, high-definition visualization and more Herndon, Virginia — December 12, 2012
ClearEdge3D today released EdgeWise Plant™ 4.0, with 9 major new features and enhancements that create the fastest end-to-end pipe modeling solution on the market. The software automates the 3D modeling of complex process plant facilities, cutting up to 85% of labor from the modeling workflow. Read more (PDF)...
ClearEdge3D Launches EdgeWise MEP for Autodesk Revit
Automated Feature Extraction of pipes now available for Revit—promises substantial workflow savings of up to 85%

Herndon, Virginia — September 5, 2012
ClearEdge3D announced today the release of its latest product, EdgeWise MEP™ for Autodesk® Revit®. For the first time, users can bring extracted pipes, conduit and other cylindrical mechanical, electrical, and plumbing (MEP) elements directly into Revit. ClearEdge3D’s new MEP solution leverages the powerful feature extraction technology of EdgeWise to automatically extract pipe solids from laser scan point clouds. Read more (PDF)...

Watch this free ClearEdge webinar!

Best Practices in Hospital As-Built MEP: Tips and Tactics to Ensure a Profitable Scan-to-Model Workflow

Listen to two experienced hospital MEP pros talk about the benefits and potential pitfalls of hospital as-built MEP projects. Join Clair VanderZwaag of Nederveld, Inc and Ted Mort of Precision 3D Scanning, Inc. as they detail their recent hospital MEP projects. Find out what went right, what went wrong and what lessons you can apply to your next project. Click here to Register
