Getting Started

The cable trays module inside of EdgeWise allows you to extract cable trays from the point database. This guide will walk you through the different Export options within the cable trays module in EdgeWise.

Keep in mind, some Cable Trays Export options may require additional tools outside of EdgeWise. Ensure you have already completed the previous workflow steps, Semi-Automated Extraction and QA, as well as Alignment and Connection.

Revit

Navigate to the File tab and click Export to Revit. Save the .c3rvt file and proceed to use the EdgeWise Import Plugin within Revit to import your data.


COE

To export using the COE format, click the Export drop-down button in the File tab, and choose either the AutoCAD or MicroStation COE format options. The COE format requires the Leica COE plugin, which is located here.


STEP

The STEP export option is located under the Export drop-down menu in the File tab. While this format does not preserve intelligence, it will still export simple geometry.


Smart Points

The last export option is Smart Points. This format allows you to export only the point data associated with your selected elements.

First, select what items you want corresponding point data with. Next, select the Smart Points export option. Finally, set your inclusive distance and then select OK.

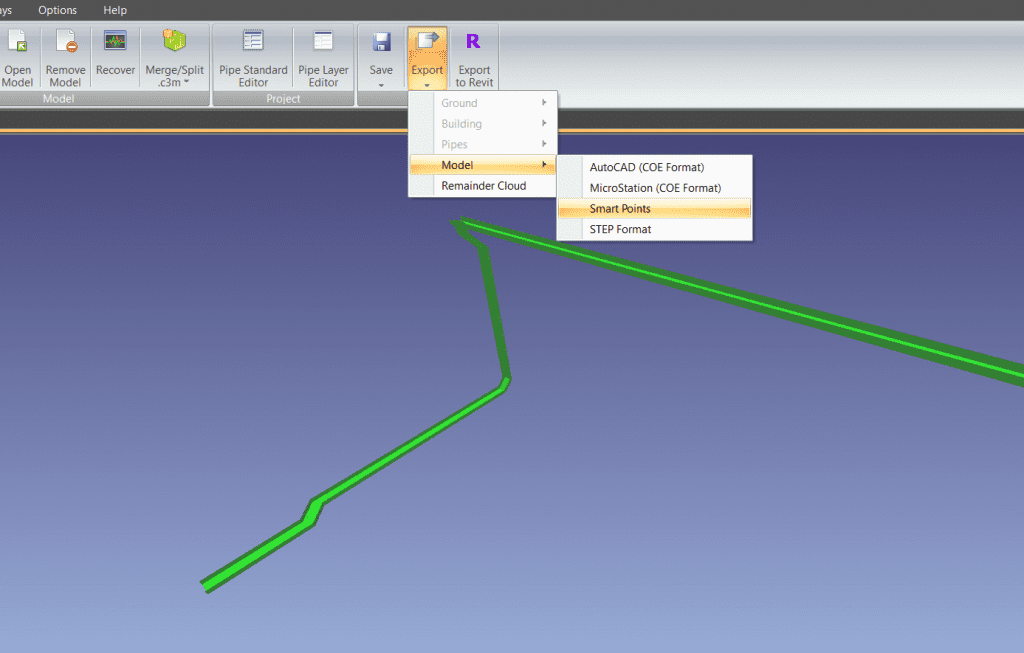

Smart Points Export Option Cable Trays
Fig 1: Smart Points Export Option

The inclusive distance is the additional distance away from your selected elements you’d like to include in the resulting file.

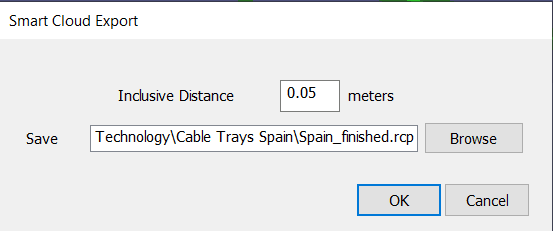

Smart Cloud Export Window
Fig 2: Smart Cloud Export Window

The corresponding .RCP or .PTS file can then be loaded into your deliverable project.

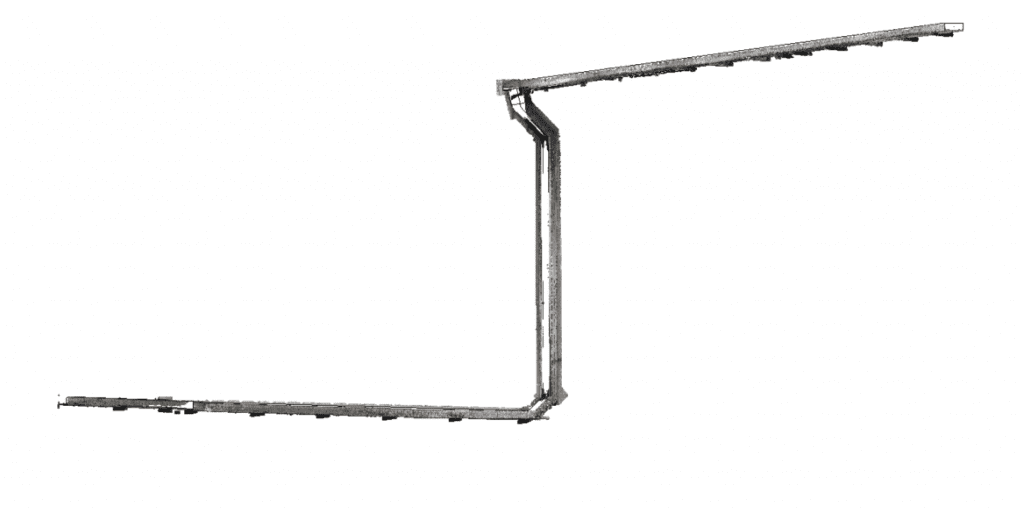

Smart Points Export inside of Revit
Fig 3: Smart Points Export inside of Revit
